Who it's for
Good fit
- Riders with smaller feet who want a thin, premium flat
- Trail and enduro riders who want concave without a thick body
- Riders who want a stainless axle and multi-bearing internals
Look elsewhere if
- Riders with standard or large feet: the large is 112 x 106 mm
- Clipless riders: there is no cleat mechanism
- One-piece cranks with 1/2" threads
Compatibility
- Shoes
- Flat-soled MTB shoes with soft rubber; trainers work with less grip
- Cleats
- None (not compatible with SPD or other clipless cleats)
- Cranks
- Any crank with 9/16" x 20 TPI threads
- Not compatible
- One-piece cranks and some kids' or vintage cranks with smaller threads
- Pin tool
- 3 mm hex key
Pros and cons
Pros
- Thin 14–12.5 mm concave body
- Light: 373 g per pair for the small
- Stainless steel axle with three bearings and an igus bushing
- 11 rear-loading pins per side, with 6 spares in the box
- Two sizes, so smaller feet are not stuck with a big platform
Cons
- Small platform is too narrow for most standard-size adult shoes
- Thin, shallow concave gives less dish than thicker pedals
- Premium price tier
What the Waveform pedal is

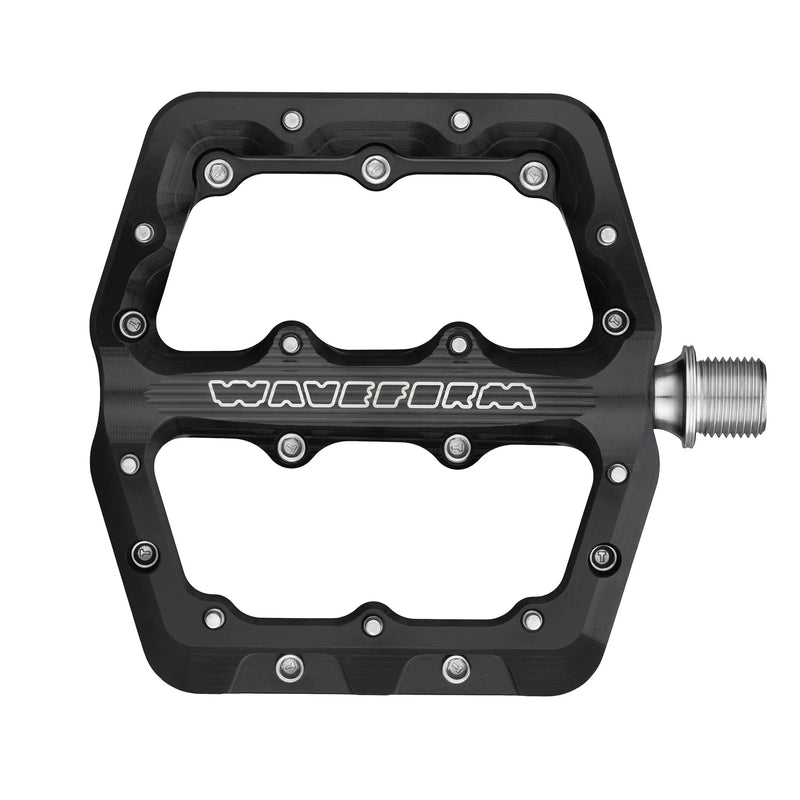

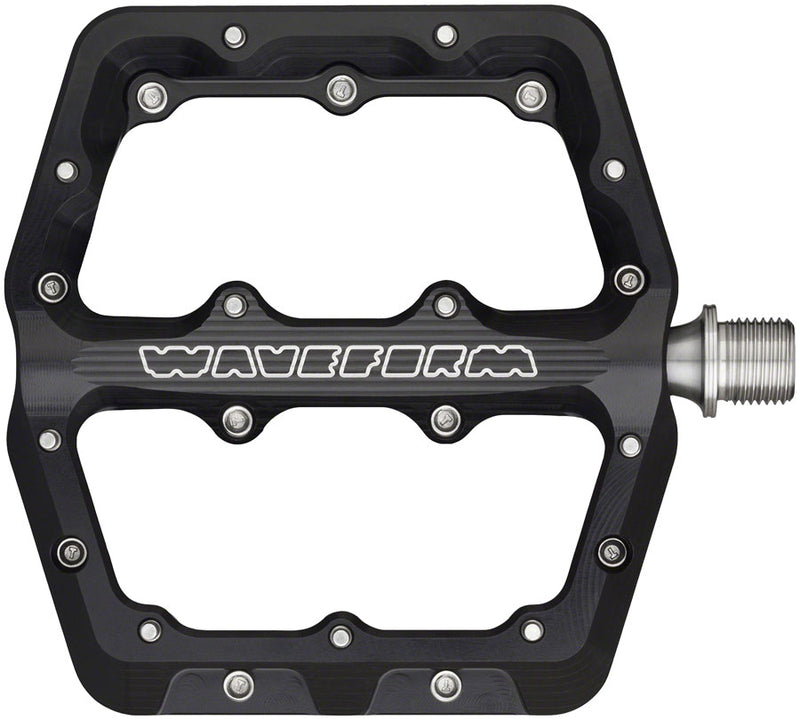

The Waveform is Wolf Tooth Components’ aluminum flat pedal, made in two sizes. This page covers the small: a 105 x 99 mm platform for riders with smaller feet.
The body is 6061-T6 aluminum on a 17-4 PH stainless steel axle, turning on three bearings plus an igus bushing. Each side gets 11 rear-loading stainless pins.
The Waveform concept: a shaped, variable-thickness body

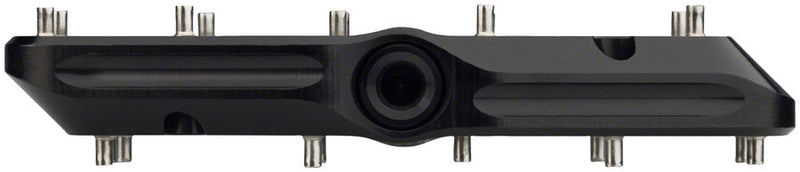

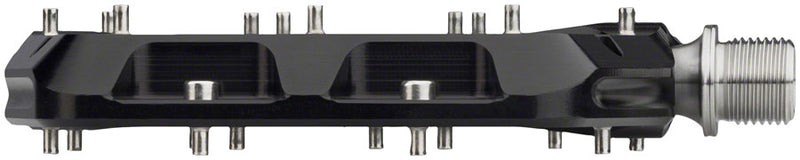

The Waveform is not a flat slab. Its body is 14 mm thick at the outer edges and 12.5 mm in the centre, so the shoe sits in a shallow dish while the pedal stays thin overall.
That 1.5 mm of concave is subtle compared with pedals that run 16 mm at the edges. The thin build keeps your foot close to the axle, which tends to feel stable underfoot, and gives more clearance over rocks than a thick pedal.
Waveform pedal sizing: small vs large
Wolf Tooth launched the sizes to suit standard and smaller-footed riders. The bodies share the same thickness, pins and internals; only the footprint and weight change.
| Waveform size | Platform | Weight (pair) | Suits |
|---|---|---|---|
| Small | 105 x 99 mm | 373 g | Smaller feet |
| Large | 112 x 106 mm | 384 g | Standard and larger feet |
Wolf Tooth does not tie the sizes to a published shoe-size chart in the specs we could confirm. If you sit between sizes or wear wide flat shoes, the large is the safer pick: it costs only 11 g a pair.
For a size-by-shoe chart, the Crankbrothers Stamp 2 and Spank Spoon 100 both publish one.
Spindle, bearings and pins
Spindle. 17-4 PH stainless steel resists corrosion better than plain chromoly, a plus for wet-weather riders.
Bearings. Three bearings plus an igus bushing spread the load along the axle, a layout shared with other premium flats such as the Hope F22.
Pins. 11 stainless steel pins per side stand 4.5 mm tall and load from the back. Remove inner pins with a 3 mm hex key if you want easier foot repositioning. Our pedal pins guide explains pin layouts.
Setup and fit notes
- Thread: 9/16” x 20 TPI. Check kids’ and vintage bikes before buying.
- Left pedal: reverse-threaded; see which pedal is reverse threaded.
- Grease: use a thin layer of grease on the threads.
- Kids’ bikes: for a junior BMX race bike, a junior-specific pedal like the AnswerBMX MPH Jr is the more typical choice.
More options sit in our flat pedal guide and on the Wolf Tooth brand page.
Care and wear
Swap bent or snapped pins with the spares in the box; rear-loading pins are easier to extract after a strike. If the pedal develops play, service the bearings and bushing rather than replacing the pair.
Alternatives to consider
Wolf Tooth Waveform (Large)
Same design on a 112 x 106 mm platform for standard and larger feet, 384 g per pair
Crankbrothers Stamp 2 (Small)
Similar 100 x 100 mm footprint with a published US 5–10 shoe-size range and adjustable pins
Hope F22
Another premium alloy flat with three bearings plus a bushing and 11 pins per side, in one size
Spank Spoon 100
Mid-range concave alloy flat at a similar size, sized for US 7–10
Wolf Tooth Components Waveform (Small): FAQ
Should I get the small or large Waveform pedal?
Wolf Tooth offers the small for smaller-footed riders and the large for standard and bigger feet. Compare your shoe sole with the platforms: small is 105 x 99 mm, large is 112 x 106 mm.
How thick is the Wolf Tooth Waveform pedal?
Both sizes measure 14 mm at the outer edges of the body and 12.5 mm in the centre.
How many pins does the Waveform have?
11 stainless steel pins per side, 4.5 mm tall, loaded from the back. Wolf Tooth includes 6 spare pins, and they come out with a 3 mm hex key.
What thread does the Waveform pedal use?
9/16" x 20 TPI, the standard adult pedal thread. Some kids' and vintage bikes use smaller threads and will not accept it.
